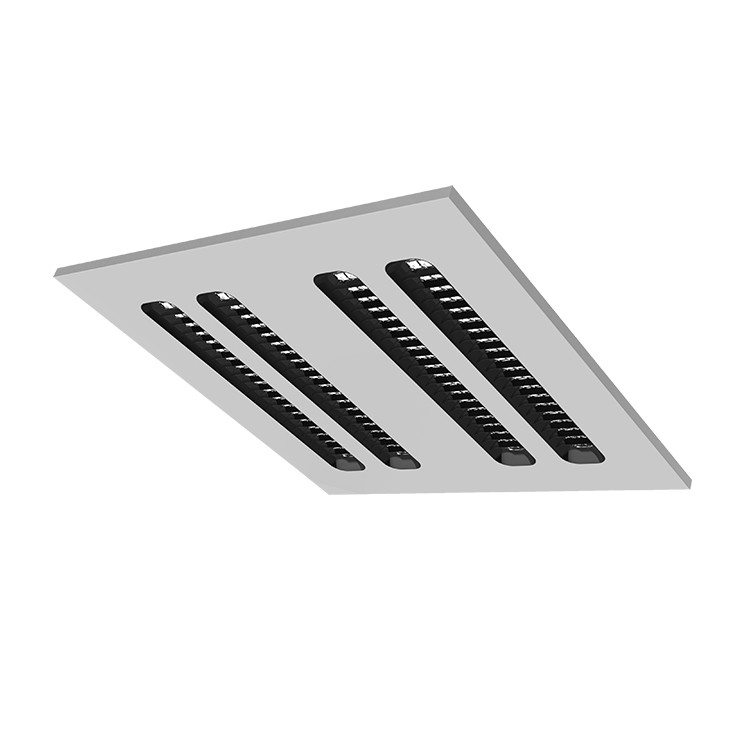

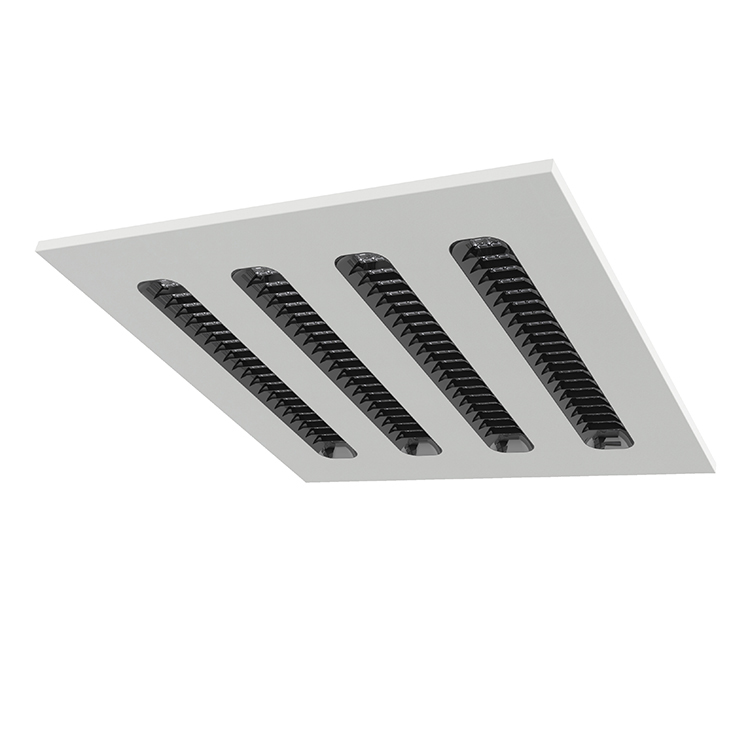

PURELIT-6060B-4L

    Features：

    Product dimension: 600×600mm(2'×2'), Height 34mm.

    Material: Aluminum+Metal+PMMA

    Efficacy: Up to 120 lm/W

    Uniform Glare Value: UGR＜21

    Finsh: White powder coating(RAL9016), Black powder coating(RAL9005)

    Optics: 100° Lens LED position and optics material optimized to provide

    the perfect blend of high performance and visual comfort, without pixels or shadows.

    Distribute: 100% direct. Life Span: L80B50 50000 hours.

    Power supply: ON/OFF. Operating Temperature:

  • Specifications

Product physical specifications:





 Model  PURELIT-6060B-4L
 Power  48W
 Product Dimension  L600*W600*H34mm
 Material  Aluminum+PMMA+Sheet Metal
 Input Voltage   AC 200-240V / AC 100-277V (50/60HZ)
 LED Source   LUMILEDS (SMD2835)
 CRI  80+
 Efficacy  115-120 lm/W
 Luminous flux  5520-5760 lm
 Uniform Glare Value  UGR＜21
 Beam Angle  Direct 100°
 Driver  CE driver or UL driver
 One Lens  total 4 pcs SMD 2835
 Lens color  Black/White

 Dimming Control

  DALI or 0-10V
 Warranty  5 years
 Installation  Recessed Mounted
 IP Rating  IP 20
 Application  Office/ School/ Hotel.



Product Sepcification Download:
