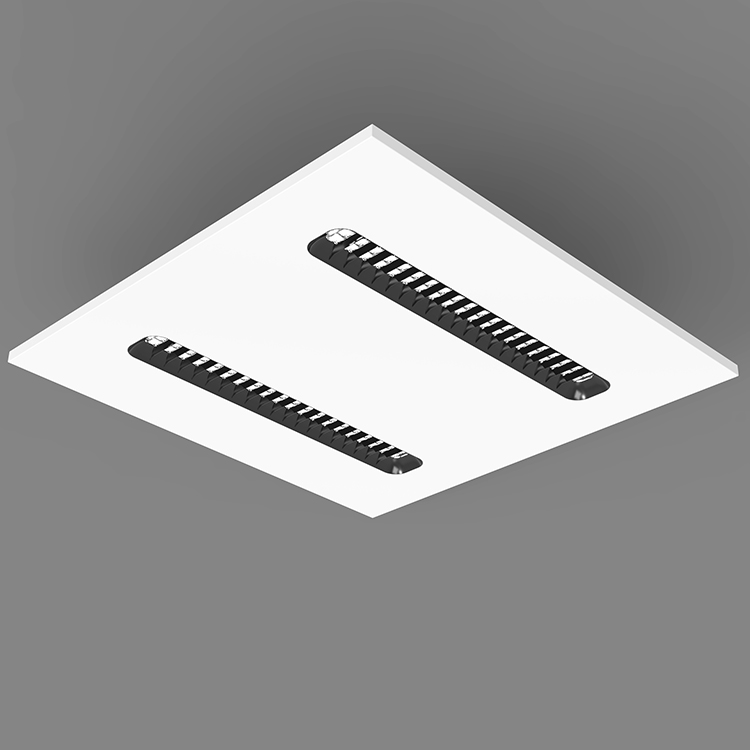

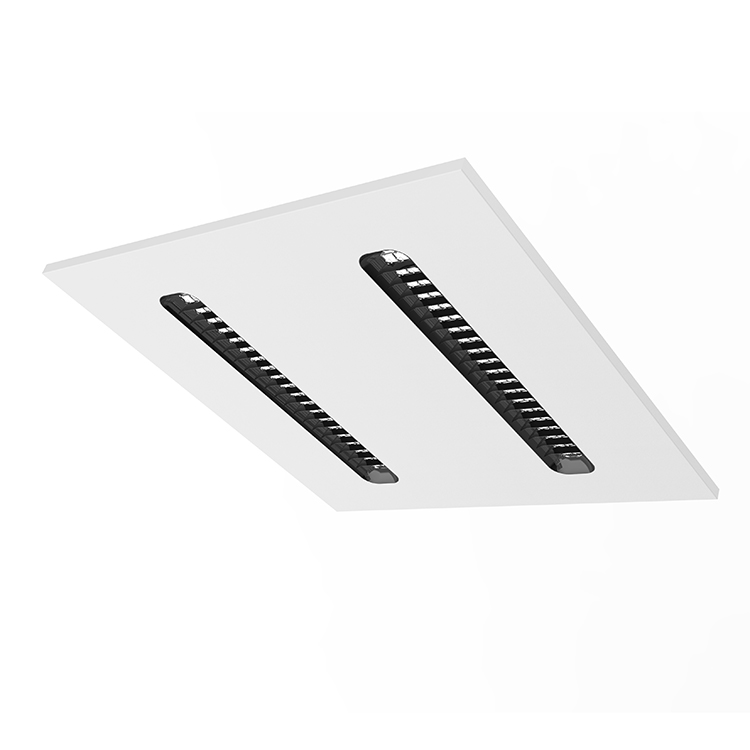

PURELIT-6060B-2L
Features：
Product dimension: 600×600mm(2'×2'), Height 34mm.
Material: Aluminum+Metal+PMMA
Efficacy: Up to 120 lm/W
Uniform Glare Value: UGR＜19
Finsh: White powder coating(RAL9016), Black powder coating(RAL9005)

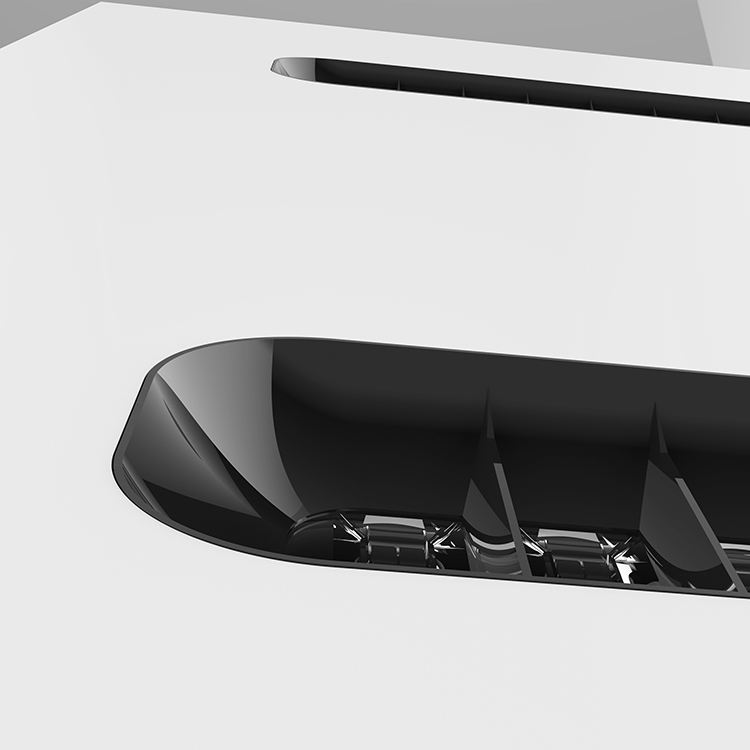

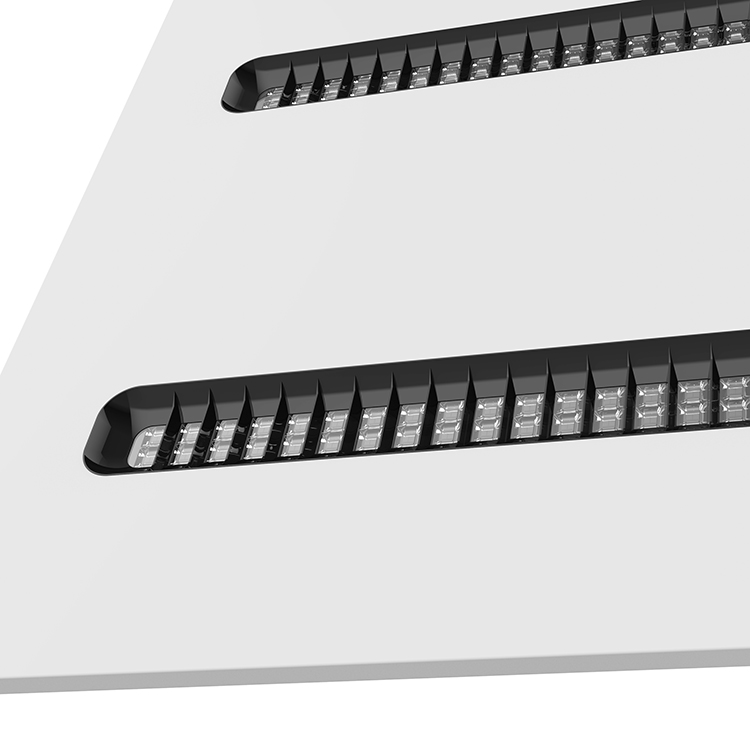

Optics: 100° Lens LED position and optics material optimized to provide
the perfect blend of high performance and visual comfort, without pixels or shadows.
Distribute: 100% direct. Life Span: L80B50 50000 hours.
Power supply: ON/OFF. Operating Temperature:
- Specifications
Product physical specifications:
| Model | PURELIT-6060B-2L |
| Power | 36W |
| Product Dimension | L600*W600*H34mm |
| Material | Aluminum+PMMA+Sheet Metal |
| Input Voltage | AC220-240V (50/60HZ) |
| LED Source | LUMILEDS (SMD2835) |
| CRI | 80+ |
| Efficacy | 115-120 lm/W |
| Luminous flux | 4140-4320 lm |
| Uniform Glare Value | UGR＜19 |
| Beam Angle | Direct 100° |
| Driver | BOKE driver, PF＞0.95 |
| One Lens | total 4 pcs SMD 2835 |
| NRC | / |
| Dimming | DALI Dimming |
| Warranty | 5 years |

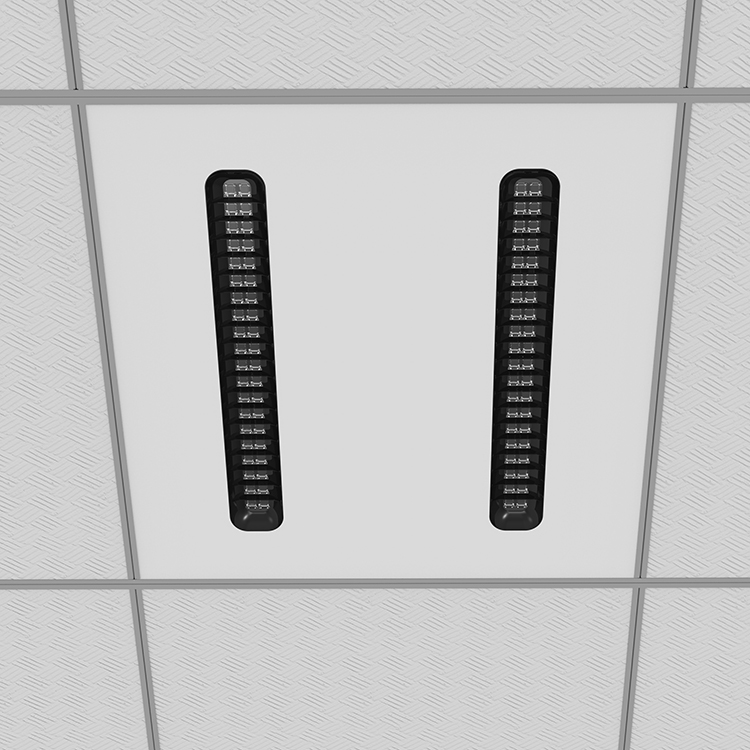

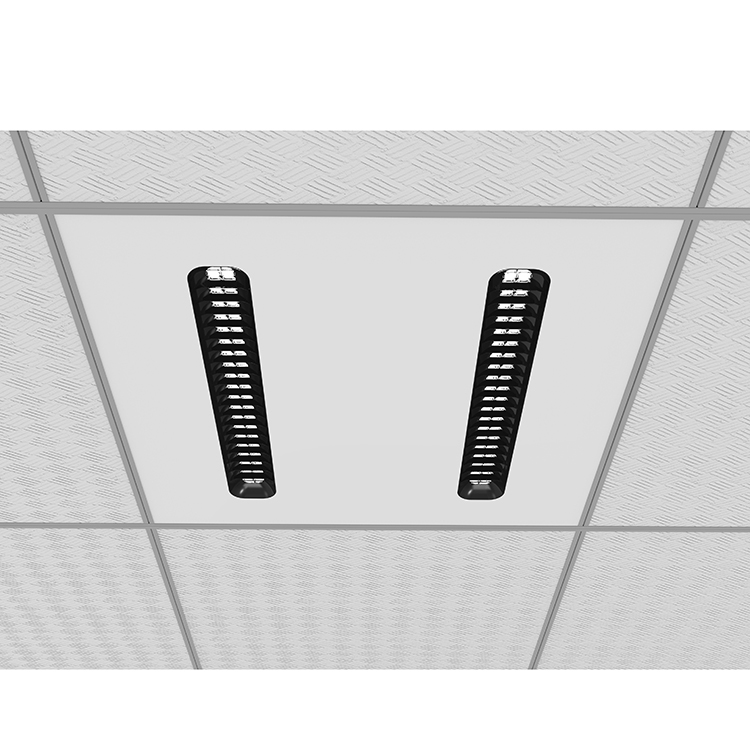

| Installation | Recessed Mounted |
| IP Rating | IP 20 |

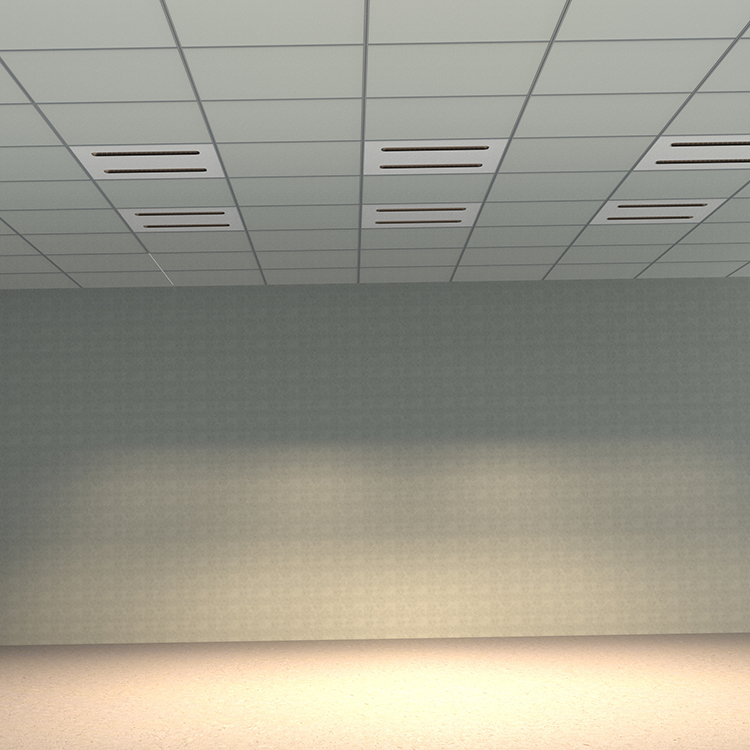

| Application | Office/ School/ Hotel. |
Product Sepcification Download:
