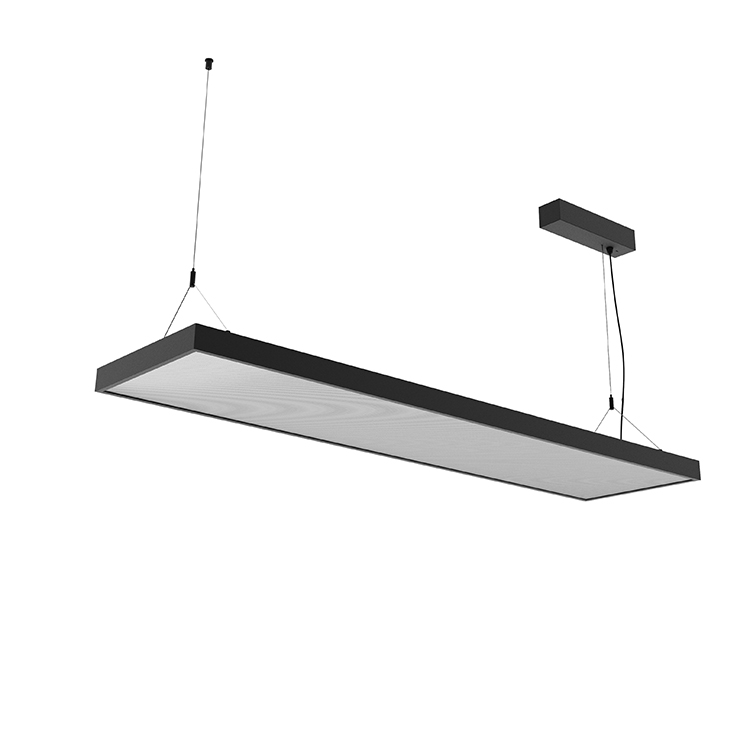

PBD-M Customize LED Panel light fixture

    Describe

    Product dimension: 700×200mm / 1200×300mm / 1200×400mm / 1200×500mm.
    Housing Finsh: Black / White.
    Color rendering index: CRI 90+
    Optic: 90° microprismatic / 120° Opal
    Distribute: Direct / Direct/Indirect.
    Power supply: ON/OFF, DALI, 0-10V.
    Operating Temperature: -20 to 55℃

  • Specifications

Product information:

 Model  PBD-M
 Power  28-100W
 Product Size  700×200mm / 1200×300mm / 1200×400mm / 1200×500mm
 Material  Aluminum+PC
 Input Voltage   AC200-240V / AC100-277V
 LED Light Source   LUMILEDS (SMD)
 CRI  90+ (R9＞60)
 Efficacy  85-90 lm/W
 Luminous flux 10200-18000 lm
 Uniform Glare Value  UGR＜26
 Optic  90° microprismatic / 120° Opal
 Driver  BOKE driver / UL Driver
 Driver PF  ＞0.9
  Life Span   50000 hours

 Dimmier

  ON/OFF / DALI / 0-10V
 Warranty  Whole product 5 years warranty
 Installation  Pendant mounted / Recessed mounted
 IP Rating  IP 20
 Application  Office/ Home/ School/ Hotel.


Product specification Download:

PBD-M Series.pdf
