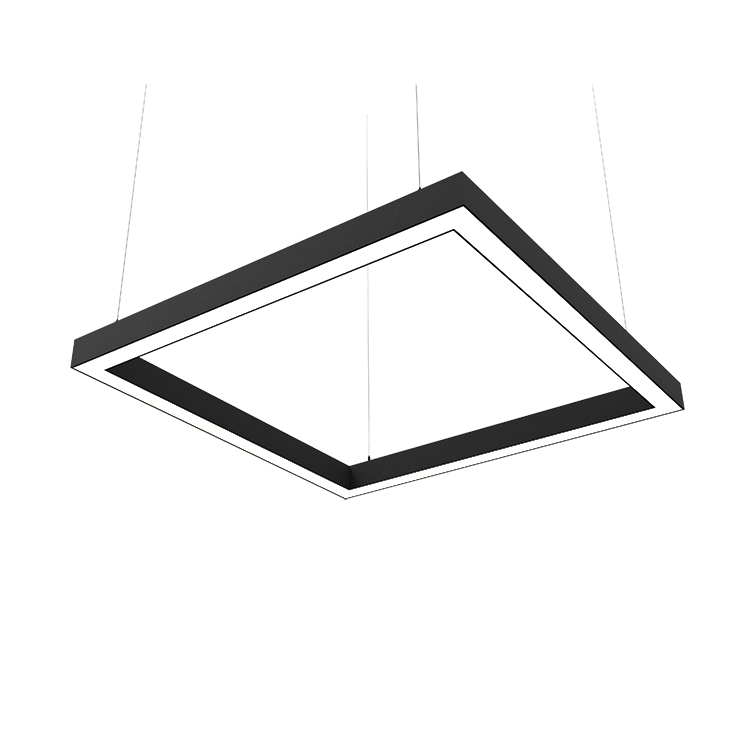

ZFX Square office LED Frame lamp

    Describe

    The 90° right angle of the HZX has been designed to break the continuous lighting design.  It has flexible connections to be fully integrated with any linear lighting length and size angle. With so many options, including bespoke designs, let your imagination defy limitations and enhance interiors like never before.

  • Specifications

Product information:

 Model  ZFX
 Power  80-120W
 Product Size  1200×1200mm
 Material  Aluminum+PC
 Input Voltage   AC200-240V / AC100-277V
 LED Light Source   LUMILEDS (SMD)
 CRI  90+ (R9＞60)
 Efficacy  85-90 lm/W
 Luminous flux 6800-10800 lm
 Uniform Glare Value  UGR＜26
 Beam Angle  90 degree
 Driver  BOKE driver / UL Driver
 Driver PF  ＞0.9
  Life Span  50000 hours

 Dimmier

  ON/OFF / DALI / 0-10V
 Warranty  Whole product 5 years warranty
 Installation  Pendant mounted
 IP Rating  IP 20
 Application  Office/ Home/ School/ Hotel.



Product specification Download:

ZFX.pdf
