SILIENCE-FY-Z-L
Describe

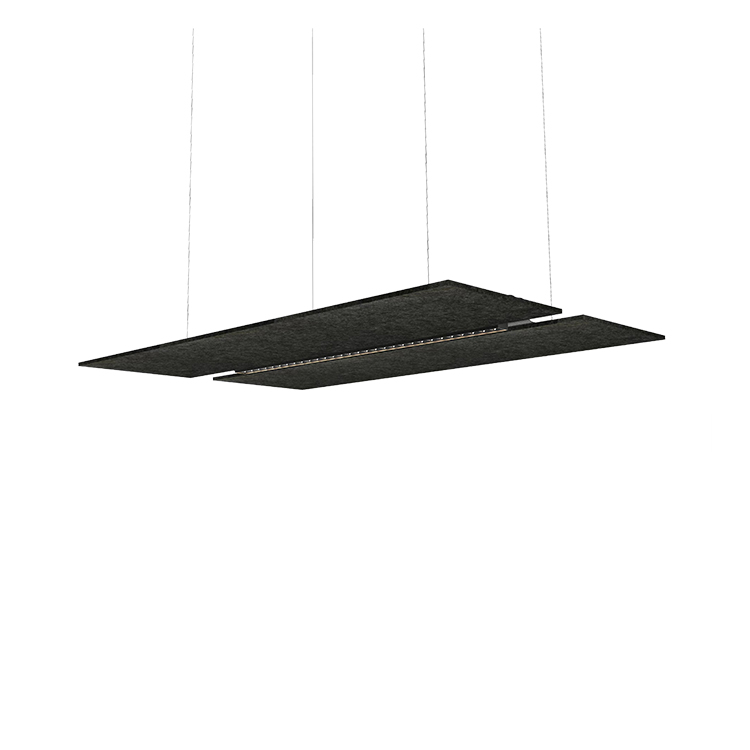

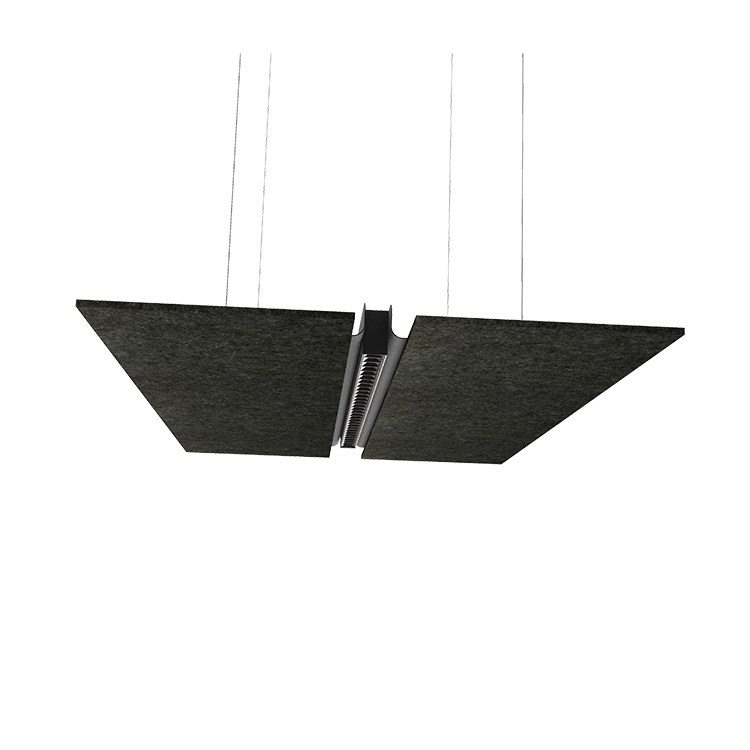

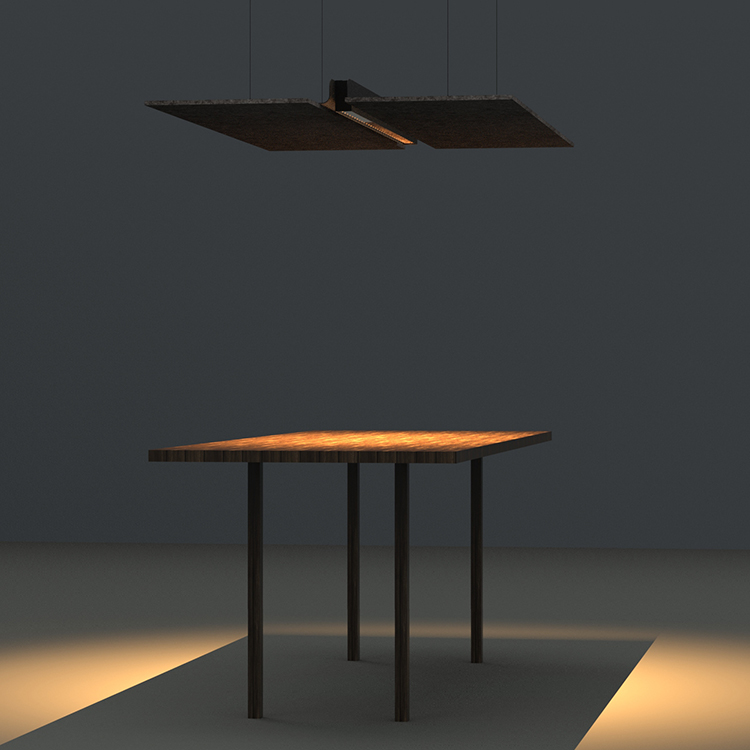

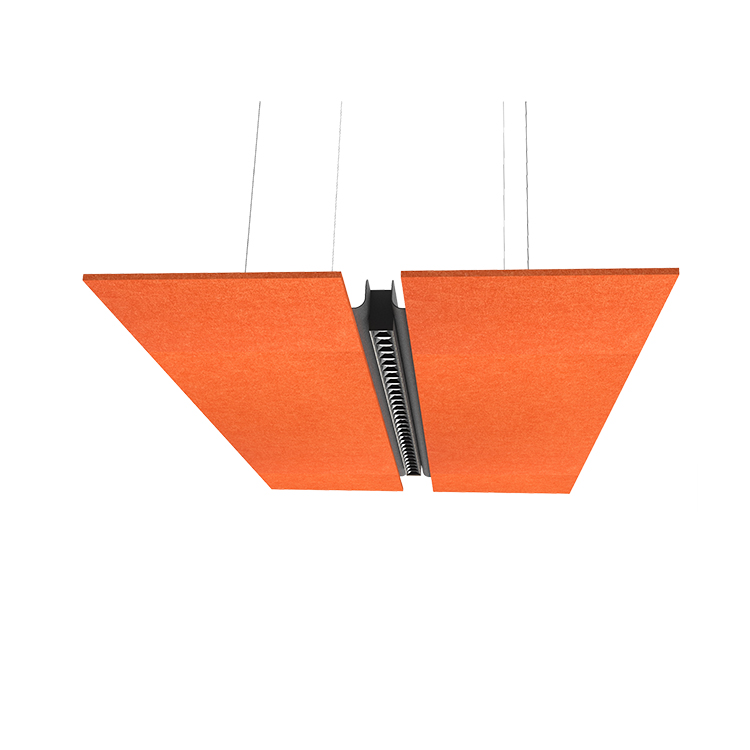

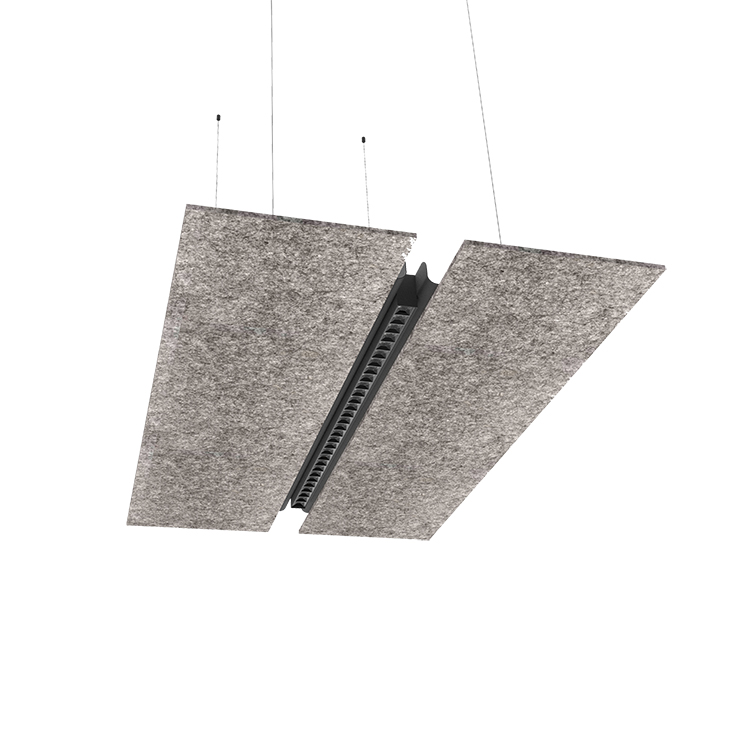

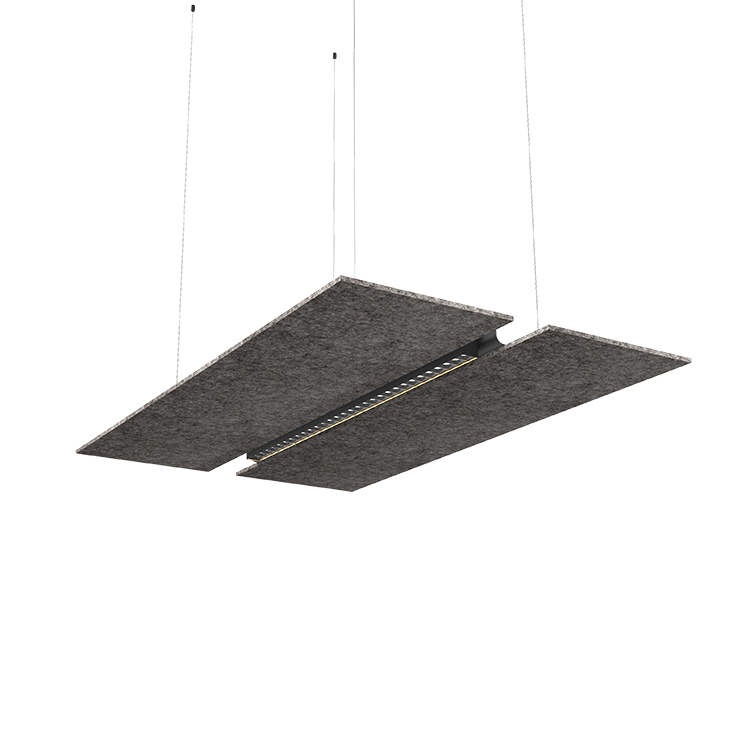

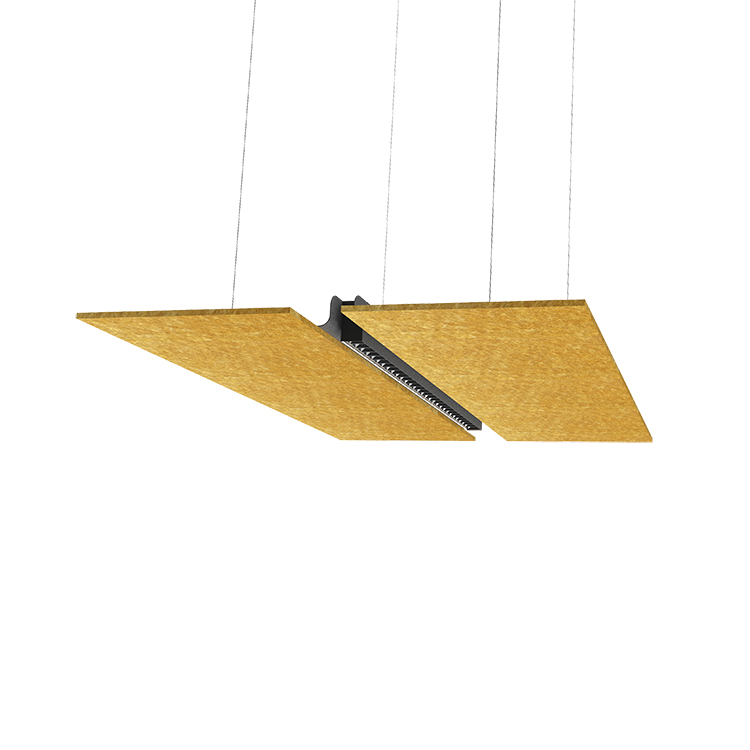

The Acoustic Wing was designed to target noise levels above desks, conference tables, and other high-traffic environments.Available in three sizes with round and Rectangle, optimizes the sound absorption and creates a lightweight, cost-effective lighting and acoustical application.A powerful size L1200*W1000mm makes the Acoustic Wing an impactful acoustical solution.The high-performing optics delivers soft and even illumination with 3CCT and Dimming options for even greater adaptability.- Specifications
Style | Acoustic LED architectural lighting |
Model | SILIENCE-FY-Z-L |
Power | 14-48W |

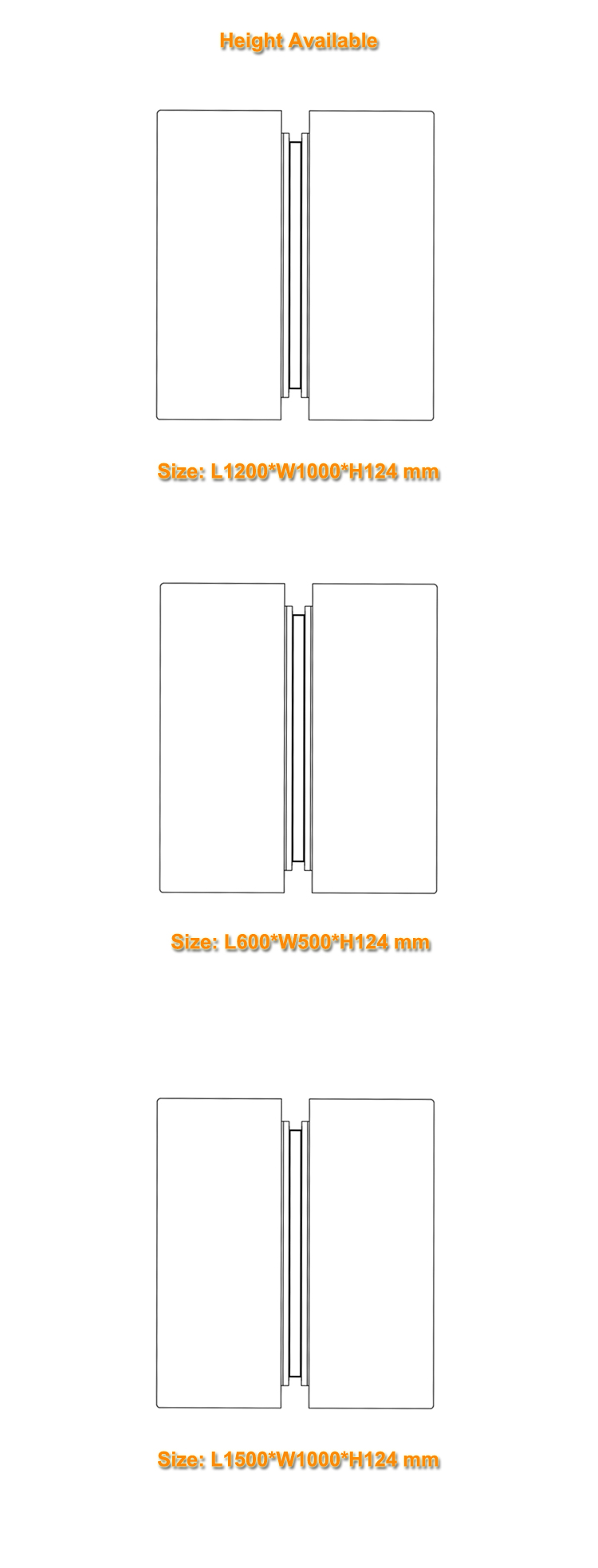

Product Dimension | L1200*W1000*H124mm/ L1500*W1000*H124mm |
Material | Aluminum+Plastic PMMA+Iron+Polyester |
Input Voltage | AC 200-240 V / AC 100-277V(50/60HZ) |
LED Source | LUMILEDS (SMD2835) |
CRI | 90+ (R9>60) |
Efficacy | 105-110 lm/W |
Lumens | 1470-4080 lm |
Uniform Glare Value | UGR<16 |
Optics | Lens |
Beam Angle | 38° / 50° |
Driver | CE driver / UL driver |

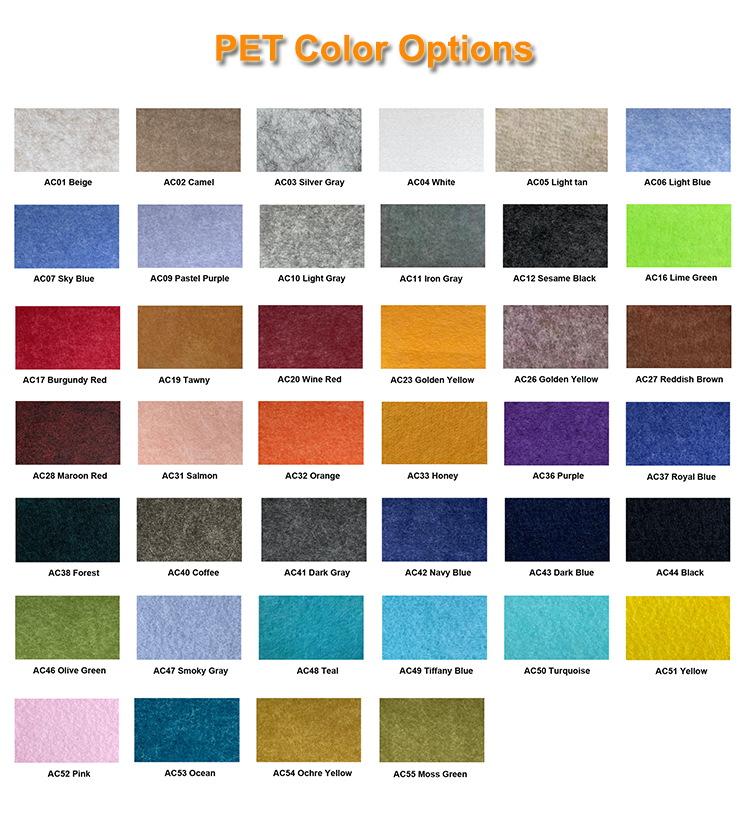

PET Thickness | 12MM |
NRC | 0.95 |
Dimming Control | DALI / 0-10V / Triac / PUSH |
Warranty | 5 years |
Installation | Suspended |
IP Rating | IP 20 |
Application | Office/ Home/ School/ Hotel. |
Product Specifications Download:
Acoustic SILIENCE-FYZ Series Spec sheet.pdf
