SILIENCE-FY-L

    Describe

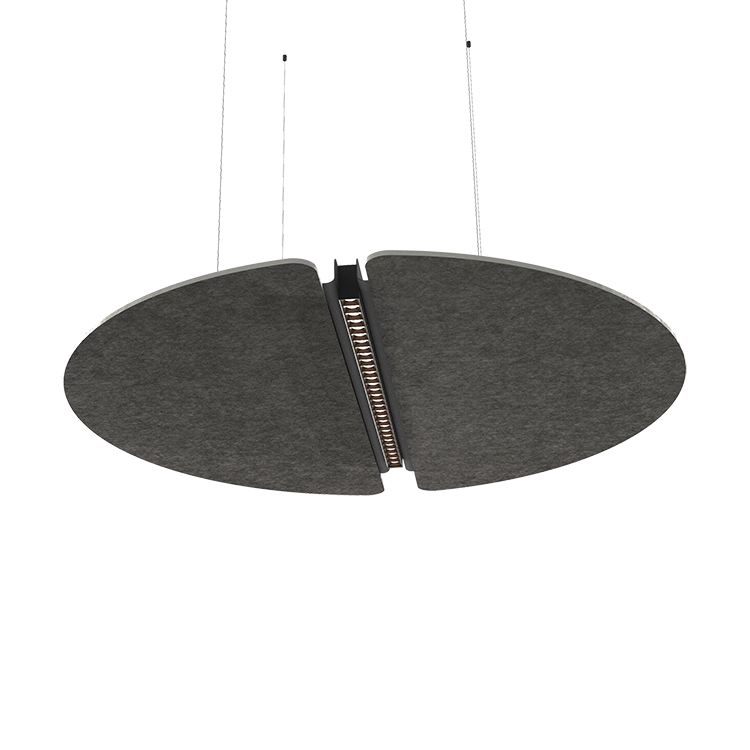

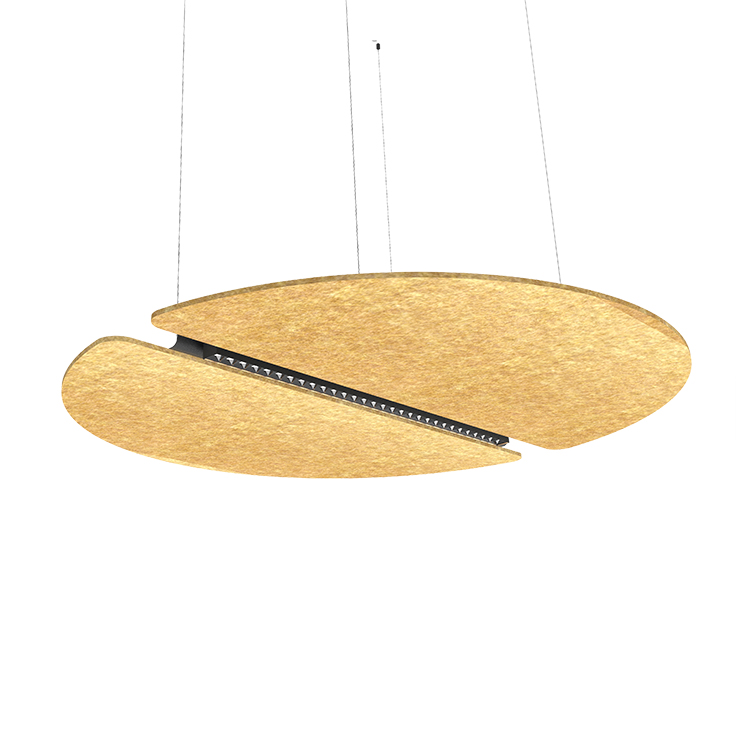

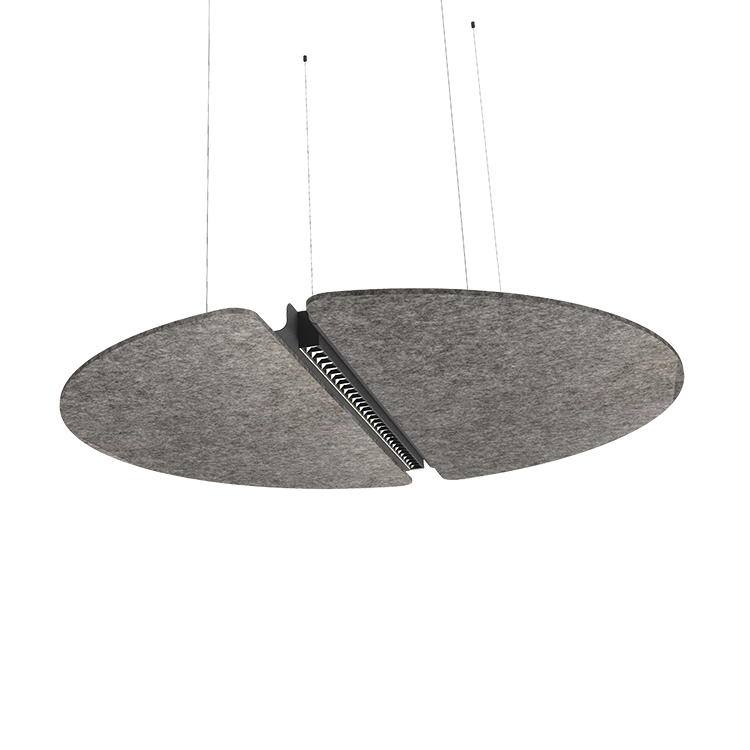

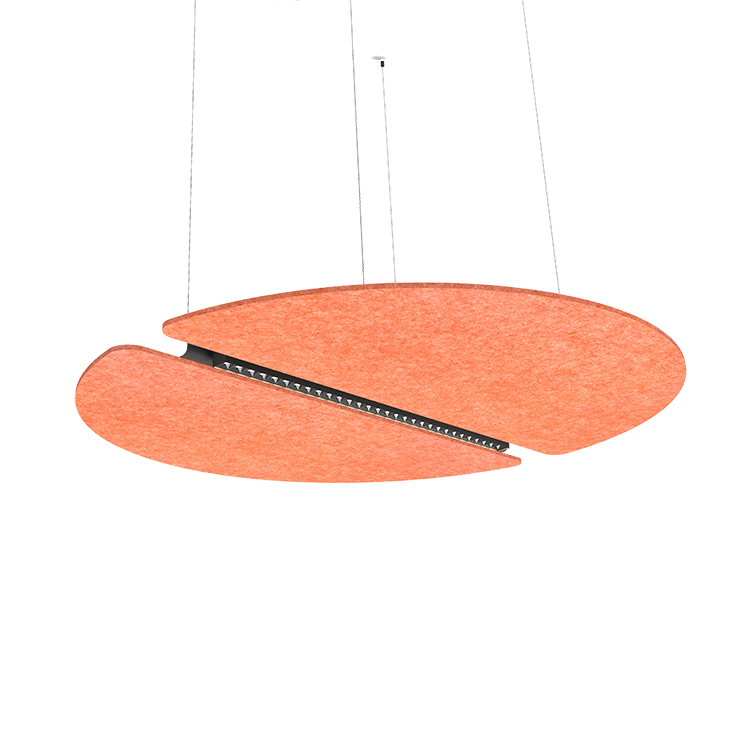

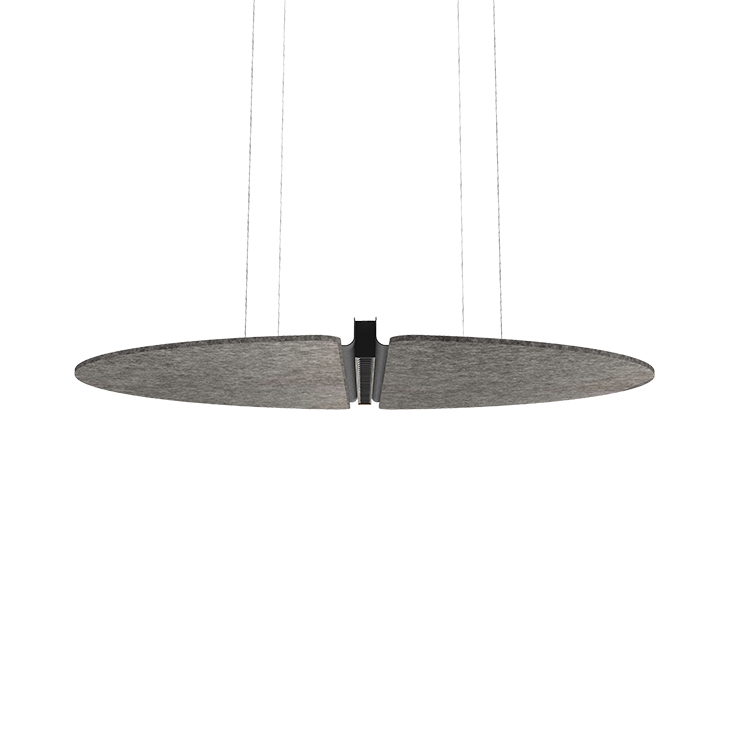

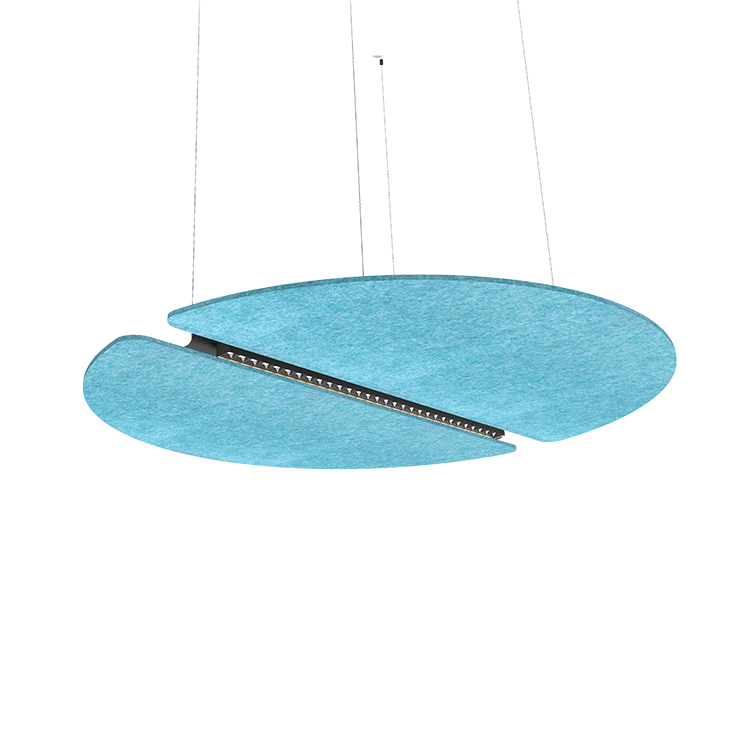

    The Acoustic Wing was designed to target noise levels above desks, conference tables, and other high-traffic environments.Available in three sizes with round and Rectangle, optimizes the sound absorption and creates a lightweight, cost-effective lighting and acoustical application.A powerful size 1600mm makes the Acoustic Wing an impactful acoustical solution.The high-performing optics delivers soft and even illumination with 3CCT and Dimming options for even greater adaptability.

  • Specifications

 Type  Acoustic LED Lighting
 Model  SILIENCE-FY-L
 Power  14-48W

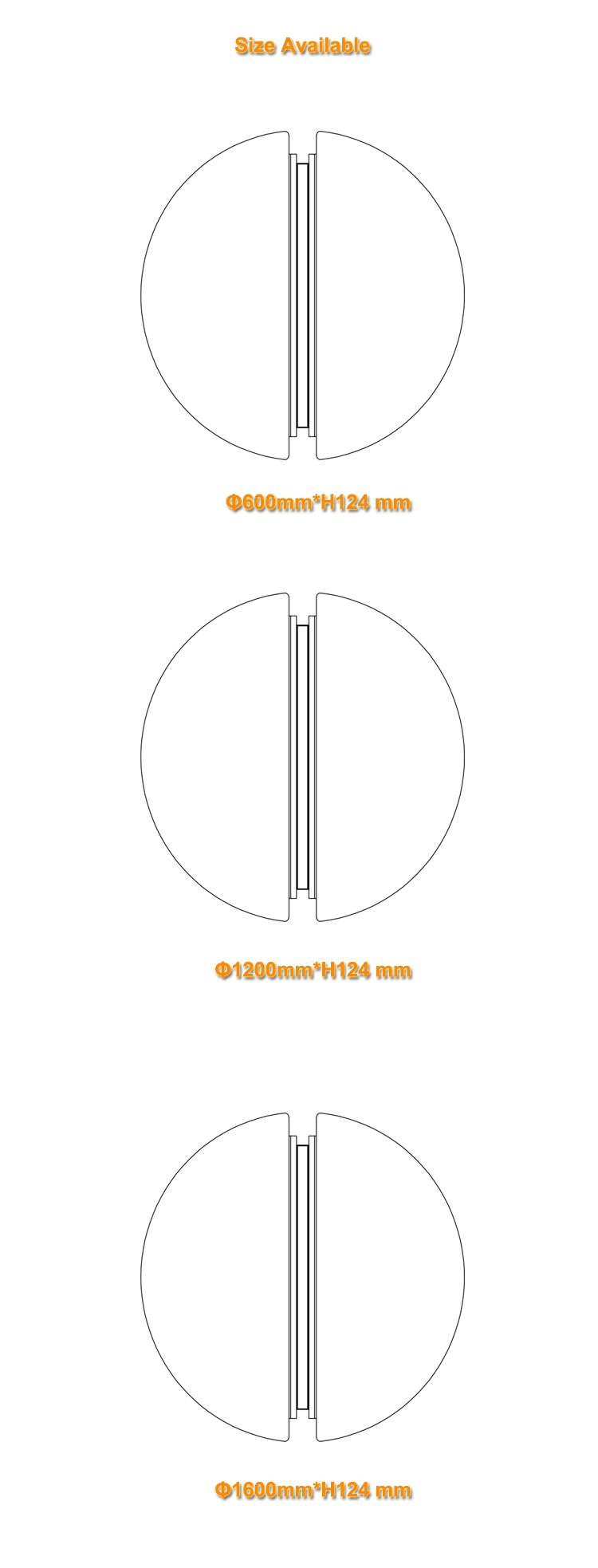

 Product Dimension  Φ600/1200/1600*H124mm
 Material  Aluminum+PMMA+Iron+Polyester
 Input Voltage   AC 200-240 V / AC 100-277 V (50/60HZ)
 LED Source   LUMILEDS (SMD2835)
 CRI  92
 Efficacy  100-105 lm/W
 Luminous flux  1120-4080 lm
 Uniform Glare Value  UGR<16
 Distribute  direct
 Optic  38°/50° Lens
 Driver  CE driver / UL driver
 PET Thickness  12MM
 NRC  0.95

 Dimming Control

 DALI / 0-10V / Triac / PUSH
 Warranty  5 years
 Installation  Suspension rope
 Suspension rope  Length 1.5meter(with Lock)
 IP Rating  IP 20

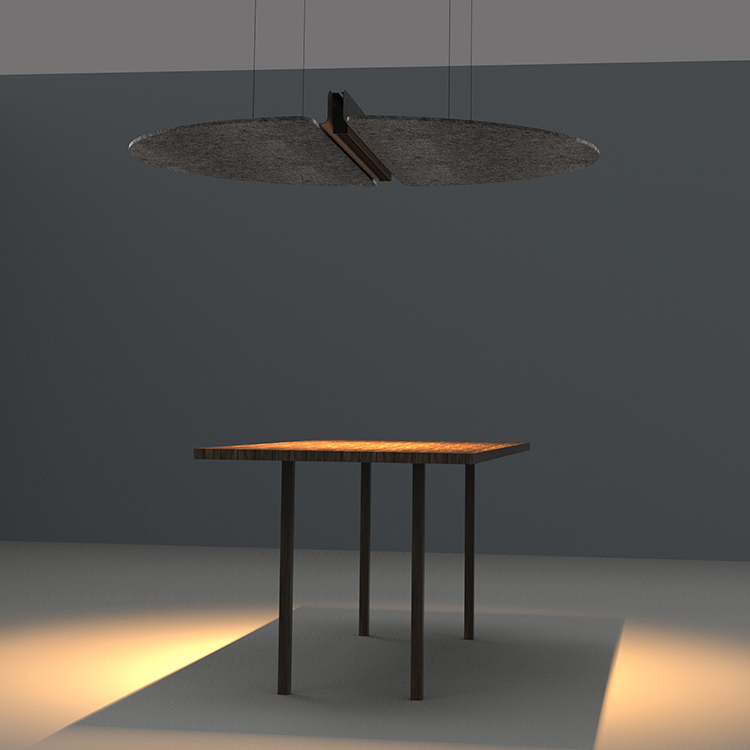

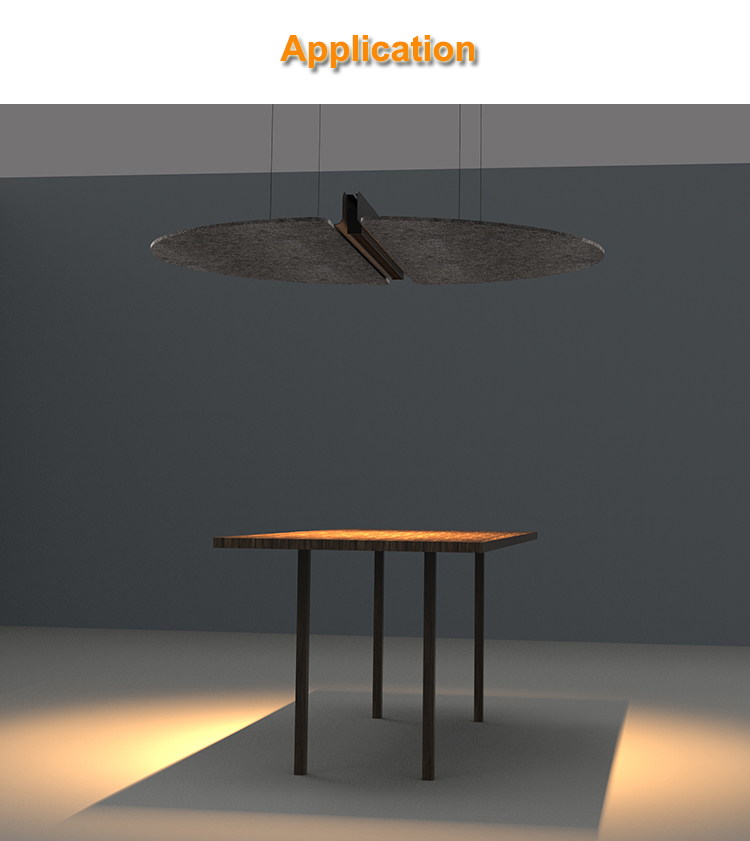

 Application  Office/ Home/ School/ Hotel.


Product Specifications Download:

Acoustic SILIENCE-FY Series Spec sheet.pdf
