SILIENCE-FY-M

    Describe

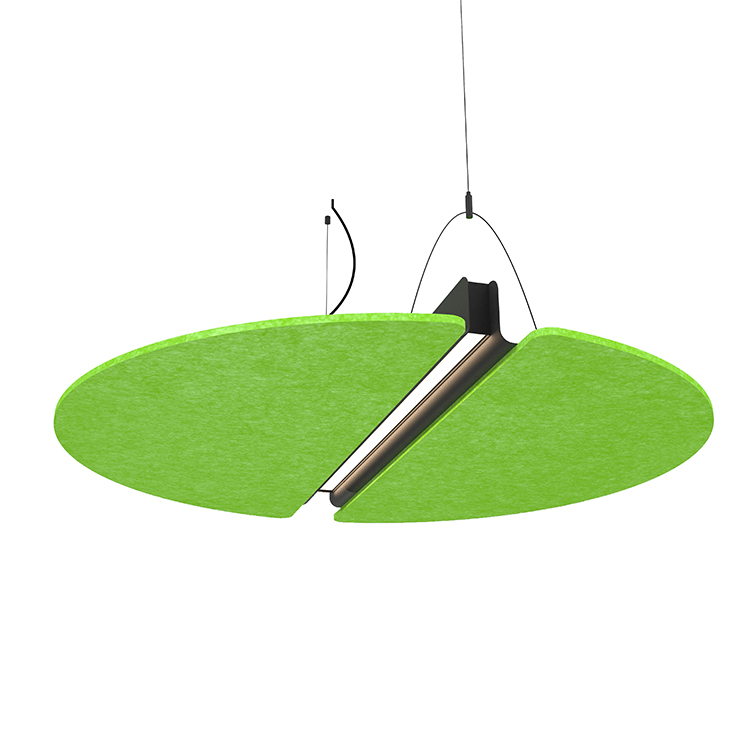

    The Acoustic Wing was designed to target noise levels above desks, conference tables, and other high-traffic environments.Available in three sizes with round and Rectangle, optimizes the sound absorption and creates a lightweight, cost-effective lighting and acoustical application.A powerful size 1600mm makes the Acoustic Wing an impactful acoustical solution.The high-performing optics delivers soft and even illumination with 3CCT and Dimming options for even greater adaptability.

  • Specifications

 Model  SILIENCE-FY-M
 Power  14-48W
 Product Dimension  Φ600/1200/1600*H124mm
 Material  Aluminum+PC+Iron+Polyester
 Input Voltage   AC 200-240 V / AC 100-277 V (50/60HZ)
 LED Source   LUMILEDS (SMD2835)
 CRI  90+ (R9>60)
 Efficacy  80-85 lm/W
 Luminous flux  1120-4080 lm
 Uniform Glare Value  UGR<23
 Optics  Microprismatic Diffuser
 Beam Angle  90°
 Driver  CE driver / UL driver
 PET Thickness  12MM(0.95)
 Distribute  direct/ indirect

 Dimming

 DALI / 0-10V / Triac / PUSH
 Warranty  5 years
 Installation  Suspended
 IP Rating  IP 20
 Application  Office/ Home/ School/ Hotel.


Product Specifications Download:

Acoustic SILIENCE-FY Series Spec sheet.pdf
