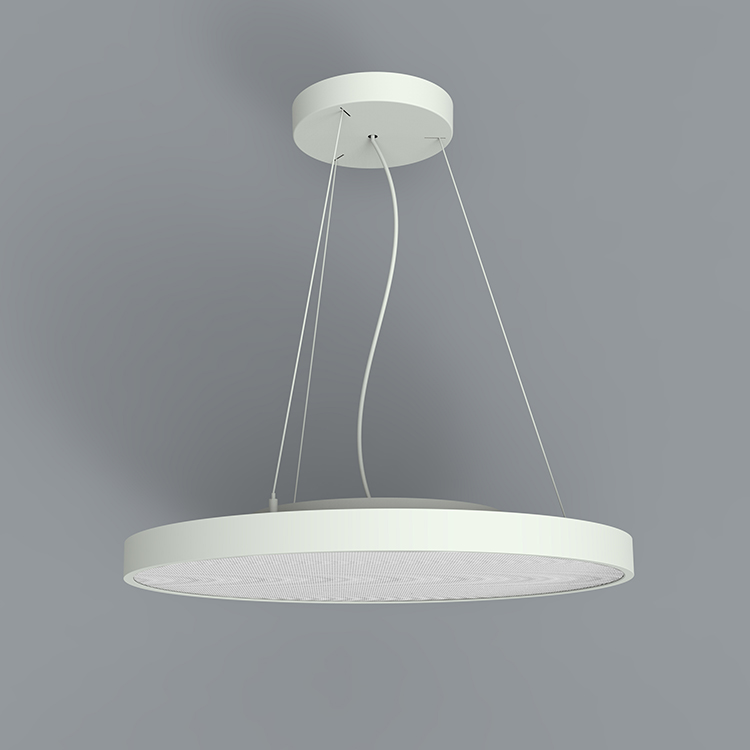

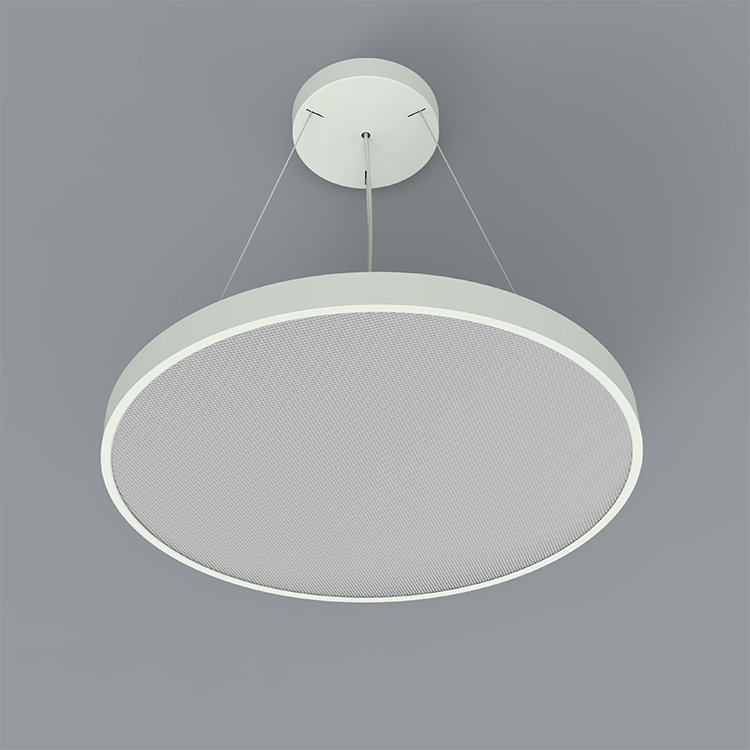

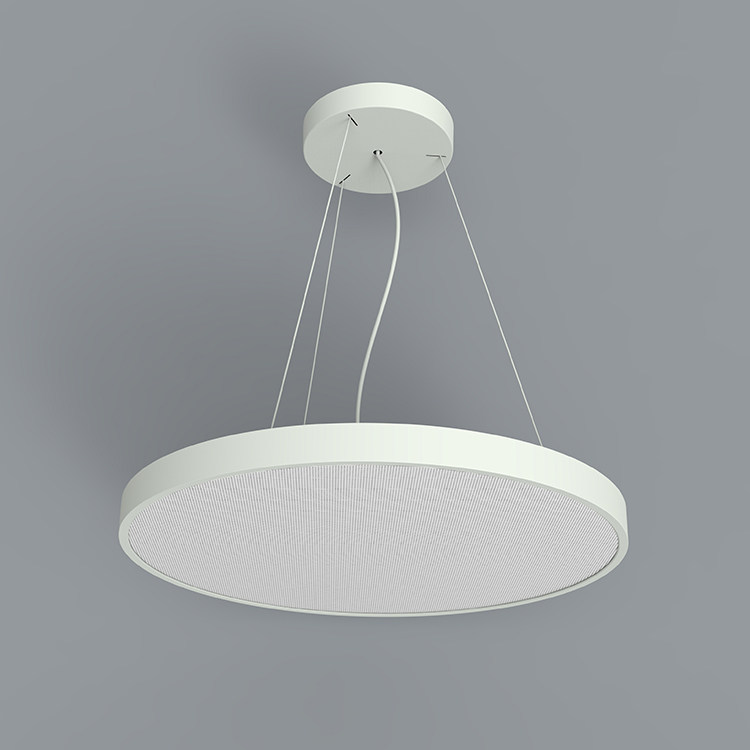

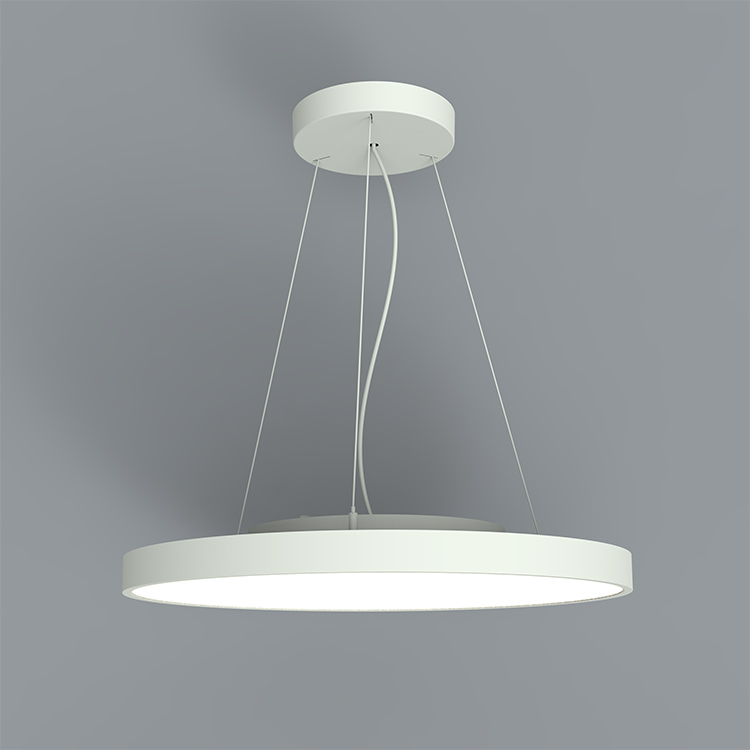

PAD-C580-MOA
Describe
Housing dimension: Diameter 580mm(22.85'),
Height 85mm(3.35").
Material: Aluminum+Metal+PC
CRI 92, Efficacy: Up to 120 lm/W
Uniform Glare Value: UGR<21
Finsh: White powder coating(RAL9016),
Black powder coating(RAL9005)
Optics: 90° microprismatic
LED position and optics material optimized to provide
the perfect blend of high performance and visual comfort,
without pixels or shadows.
Distribute: 100% direct.
Life Span: L80B50 50000 hours.
Power supply: ON/OFF.
Operating Temperature: -20 to 55℃
- Specifications
Type | Pendant rope LED Moon Light |
Model | PAD-C580-MOA |
Power | 36W |
Product Dimension | D580*H85mm |
Material | Aluminum+plastic PC+Metal |
Input Voltage | AC200-240V (50/60HZ) |
LED Source | LUMILEDS (SMD2835) |
CRI | 92 |
Efficacy | 115-120lm/W |
Luminous flux | 4140-4320 lm |
Uniform Glare Value | UGR<21 |
Distribute | 100% Down Lighting |
Optic | 90° microprismatic |
Driver | BOKE DALI driver |
Control | Switch button |
Dimming | NO dimmable |
Warranty | 5 years |
Installation | pendant mounted |
IP Rating | IP 20 |

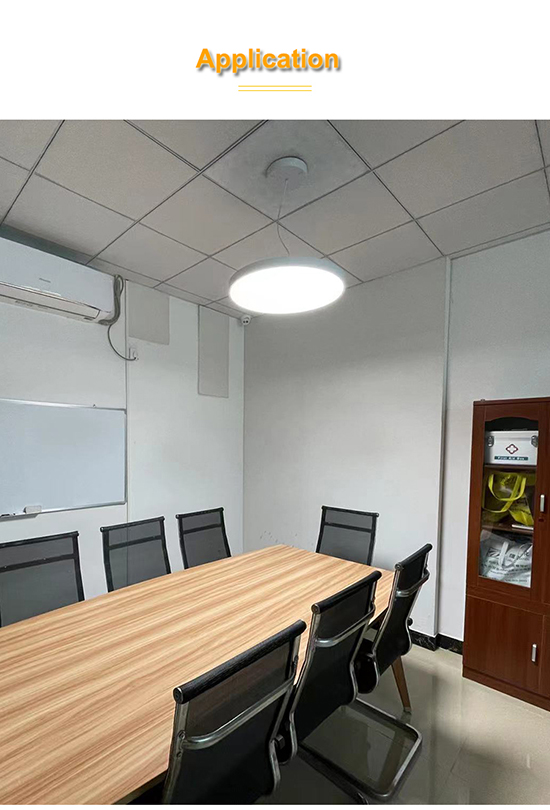

Application | Office/ Home/ School/ Hotel. |
Product Specification Download:

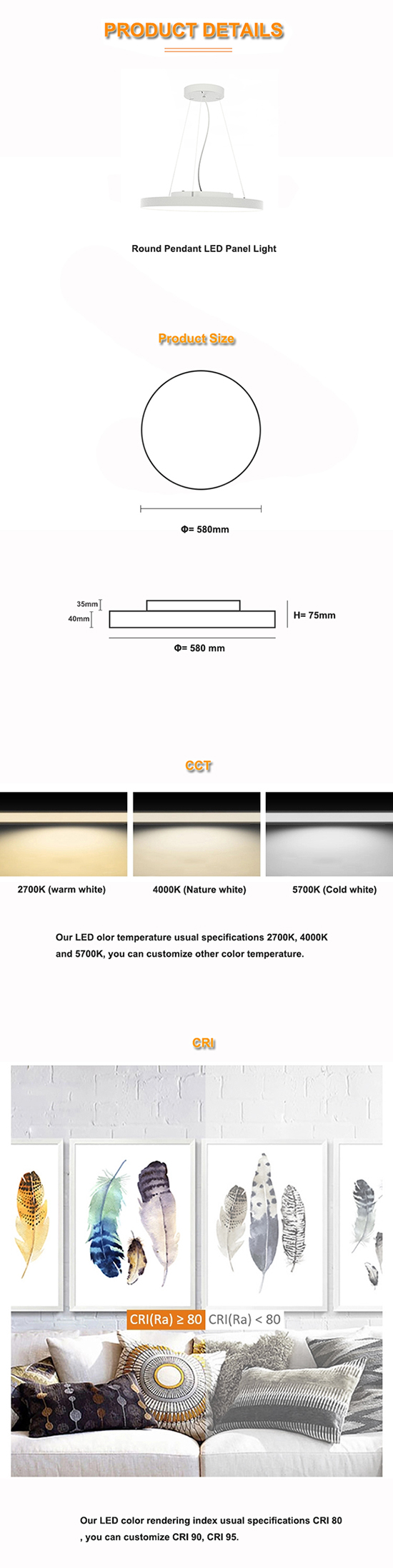

pendant rope LED Moon Light details:
